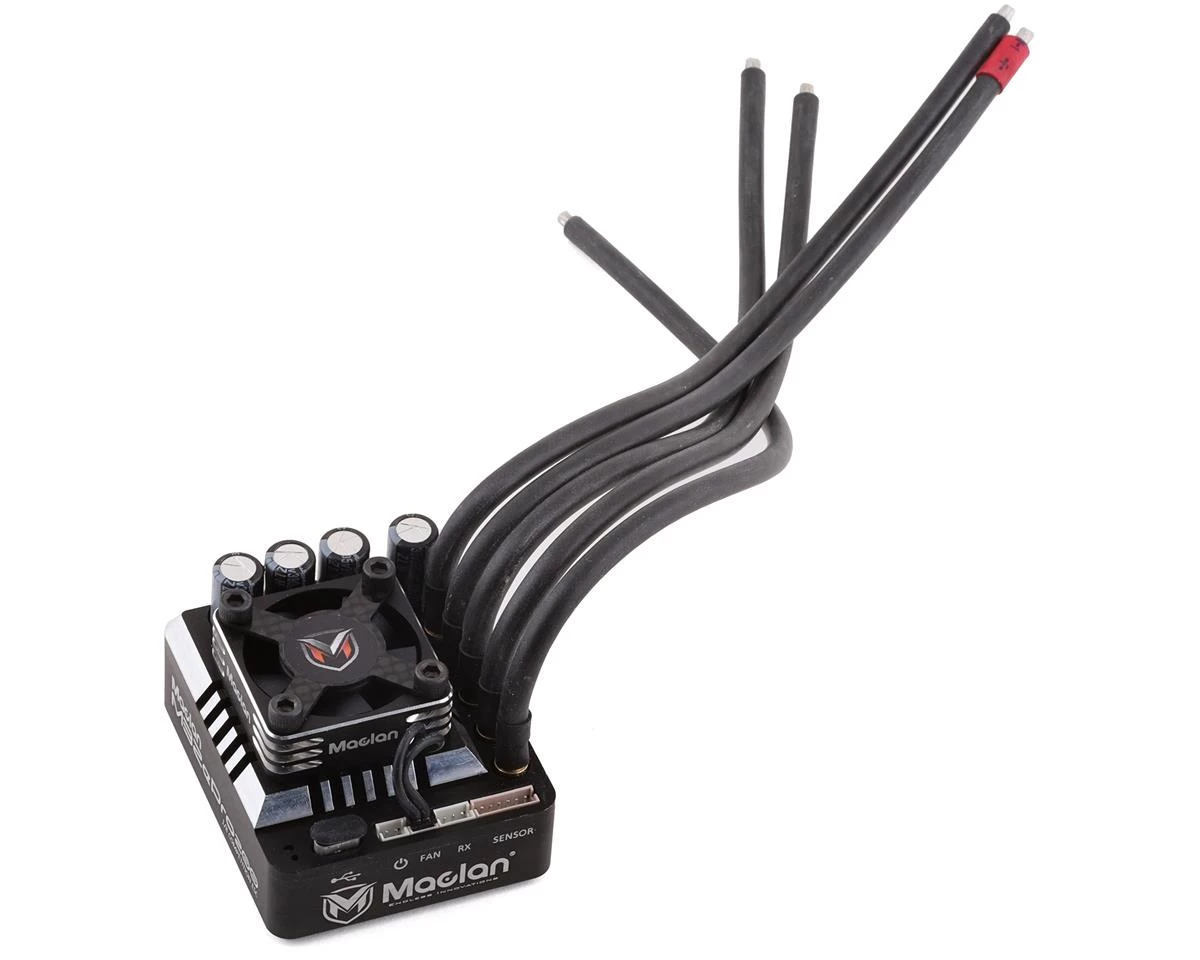

Maclan M32e Pro 200 Competition 1/8 Brushless ESC

The Maclan M32e Pro 200 Competition 1/8 Brushless ESC is a purpose built ESC designed to give you next level performance and technology. Intended for 4S 1/8th scale buggy/truggy or 2S 1/10th scale SCT applications, this ESC features a full aluminum case for maximum heat dissipation and better durability for the off-road competition environment. The M32e Pro 200 Competition 1/8th ESC gives you a super smooth power band and reliable performance in the most demanding R/C conditions.

NOTE: This ESC was not designed for drag racing applications. Maclan’s warranty will not cover faults caused by drag racing.

• Purposely built for 1/8th scale e-Buggy and e-Truggy applications
• Upgraded internal components with Hurricane aluminum fan and carbon fiber fan guard
• Silicon coated circuit board for improved durability
• High-performance 32-bit PIC32 CPU for high speed and accurate processing
• Next generation firmware algorithms allow for a nitro-like throttle feel
• On-board USB host + slave dual-mode for ease of connectivity and unlimited extensibility
• Dual ‘power-on’ options for the ease of operation. (can be controlled by a switch or direct to the battery)
• All aluminum structures with omnidirectional heatsink for maximum airflow and optimum cooling performance
• All detachable connectors with several optional length cables
• Adjustable throttle and brake PWM frequency for fine-tuning
• Motor/ESC temperature protection and low voltage protection
• MS Windows 7/10 compatible and mobile app software for data logging, programming, and firmware updating
• Best performance and durability with Maclan MR8.4 series motor

Specifications:

• Scale: 1/8th
• Power Input: 2S-4S Li-Po
• Intended Applications: 1/8 e-Buggy, 1/8 e-Truggy and 1/10 SCT (drag race not supported)
• Continuous Current: 200A
• Peak Current: 1000A
• Mode: Sensored/Smart Sensorless
• CPU: Super speed PIC32 32-bit CPU
• Wire input: Black 12AWG 200mm x2
• Wire output: Black 12AWG 200mm x3
• Cooling fan: 30x30x10mm Hurricane Aluminum turbo fan
• Dimension: 58x48x34mm
• Net weight: 110g (w/o wires and cooling fan)
• Support voltage/ Motor KV:
• 2S: up to 5000KV
• 3S: up to 4000KV
• 4S: up to 3000KV

Includes:

• (1) Maclan M32ePro 200 Competition ESC
